| Model | GK15 Stainless Steel Diaphragm Pump |
|---|---|
| Max.Working Pressure | 100psi (0.7Mpa, 7bar) |
| Max.Flow Rate | 15 gpm (57 Ipm) |
| Max.Reciprocating Speed | 400cpm |
| Max. Suction Height(Dry Sucking) | 4.5m |
| Max.Permitted Grain | 3/32 in. (2.5mm) |
| Max.Air Consumption | 20scfm (10L/s) |
| Air Inlet Size | 1/4 in. |
| Air Outlet Size | 3/8 in. |
| Fluid Inlet Size | 1/2, 3/4 in. |
| Fluid Outlet Size | 1/2, 3/4 in. |
| Weight | Stainless steel pump 8.9kg |
Products Applications
Are you in need of a versatile and robust diaphragm pump for your fluid transfer applications? Look no further than the GK15 1/2 Inch Stainless Steel Diaphragm Pump, a top-of-the-line product offered by GK pumps. This pump is specifically designed to meet the demanding needs of various industries, setting itself apart from the competition with its exceptional features and performance.Its robust construction, outstanding performance, and unmatched versatility make it the go-to solution for fluid transfer needs in diverse industries. Trust GK pumps for your pumping solutions and experience unparalleled reliability and efficiency. Take your enterprise to new heights with the GK15 1/2 Inch Stainless Steel Diaphragm Pump - where innovation meets reliability!
| Industries Involved | Applications |
| Petrochemical Industry | Crude oil, heavy oil, grease, mud, sludge, etc. |
| Ceramic Industry | Mud,Slurry pottery,Lime milk, Clay Slurry |
*Please contact our sales service at sales@gk-supply.com for more details about products applications.
Robust Construction: The 1/2 Inch Stainless Steel Diaphragm Pump is built with a sturdy stainless steel body, ensuring excellent durability and longevity. Its rugged construction makes it suitable for handling demanding fluids and challenging environments.
High Working Pressure: With a maximum working pressure of 100psi (0.7Mpa, 7bar), this diaphragm pump can efficiently handle fluids under significant pressure, making it ideal for applications requiring high-pressure pumping.
Efficient Flow Rate: The pump boasts a maximum flow rate of 15gpm (57 lpm), enabling quick and efficient fluid transfer, reducing downtime, and enhancing productivity in various industries.
Rapid Reciprocating Speed: The 1/2 Inch pump's maximum reciprocating speed of 400cpm ensures smooth and continuous pumping, contributing to consistent and reliable operations.
Versatile Suction Capability: Featuring a maximum suction height of 4.5m (Dry Sucking), the 1/2 Inch Diaphragm Pump can effectively handle fluids from lower levels, making it suitable for applications where the fluid source is situated at a distance or below the pump level.
Handling of Particles: The pump's maximum permitted grain size of 3/32 in. (2.5mm) allows it to handle liquids containing small particles and solids effectively, making it well-suited for pumping abrasive media and liquids with suspended solids.
Low Air Consumption: The 1/2 Inch Diaphragm Pump is designed to be energy-efficient, with a maximum air consumption of 20 scfm (10L/s). This feature helps reduce operational costs and contributes to a greener and more sustainable operation.
Compact and Lightweight: Weighing only 8.9kg, the GK15 Stainless Steel Diaphragm Pump is easy to handle, install, and transport, making it convenient for various applications.
Precise Air and Fluid Inlet/Outlet Sizes: The pump is equipped with a 1/4 inch air inlet and a 3/8 inch air outlet, ensuring optimal air supply. The fluid inlet and outlet sizes of 1/2 and 3/4 inch respectively offer flexibility for fluid transfer needs.
Wide Range of Applications: The GK15 Diaphragm Pump finds applications in various industries, including but not limited to the petrochemical industry (for handling crude oil, heavy oil, grease, mud, sludge, etc.) and ceramic industry (for handling mud, slurry, pottery, lime milk, clay slurry, etc.).
Abrasion Resistance: Thanks to its stainless steel construction and efficient design, the pump exhibits excellent abrasion resistance, ensuring reliable performance even when dealing with abrasive fluids.
Easy Maintenance: The pump's simple design allows for easy maintenance, minimizing downtime and ensuring prolonged operational efficiency.

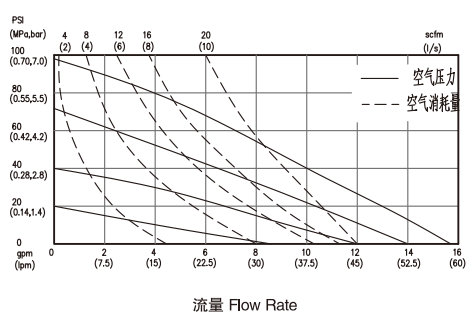

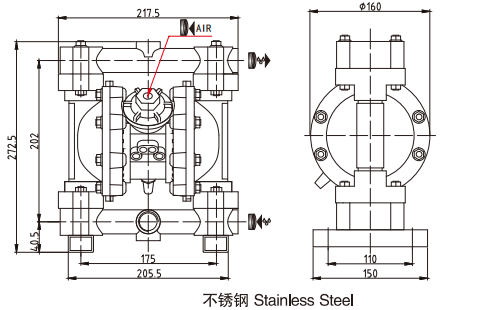

Installation Dimensions and Performance Curves
Product Advantages

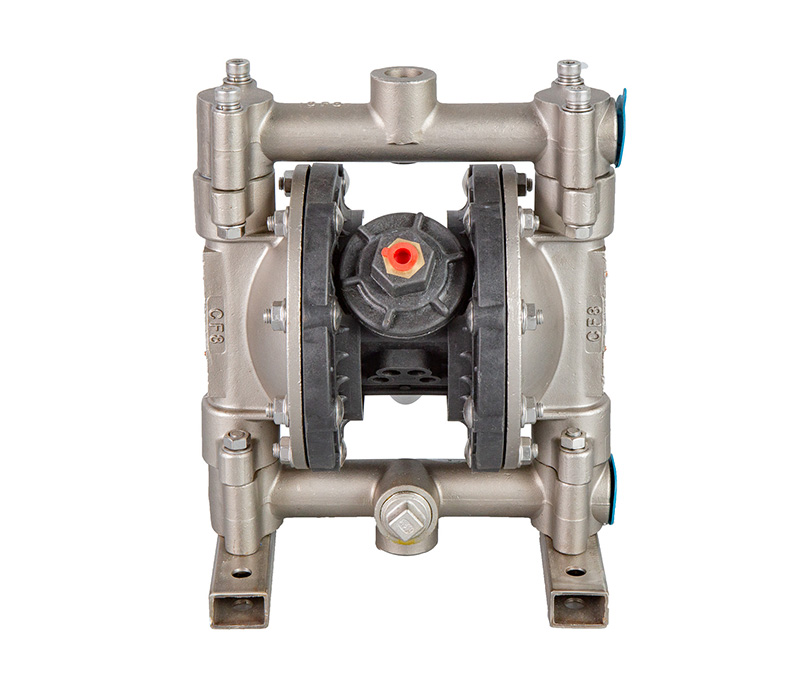

GK 1/2 Inch Stainless Steel Diaphragm Pump with weight 8.9kg.
It is good for abrasion resistance,and can transfer liquids with grain.
The GK 1/2 Inch Stainless Steel Diaphragm Pump, engineered with precision by GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD. With a weight of just 8.9kg, this lightweight powerhouse boasts exceptional abrasion resistance, ensuring it remains durable and efficient even when handling tough applications with liquids containing grains and particles.
Our Stainless Steel Diaphragm Pump is specially designed to excel in various industries. In the petrochemical sector, it effortlessly handles crude oil, heavy oil, grease, mud, sludge, and more. In the ceramic industry, it expertly transfers mud, slurry, pottery, lime milk, clay slurry, and beyond. Whatever your requirements, GK pumps have got you covered!
Discover why GK diaphragm pumps are the top choice for countless enterprises worldwide. Experience seamless fluid transfer and witness the pump's prowess in handling challenging materials. Reach out to us now and elevate your operations with our exceptional Pneumatic Diaphragm Pump (Metal) from the GK family!
Invest in the best with GK - the name you can trust for reliability, performance, and innovation in diaphragm pumps. Enhance your productivity today with GK pumps - your partner in fluid transfer excellence!
