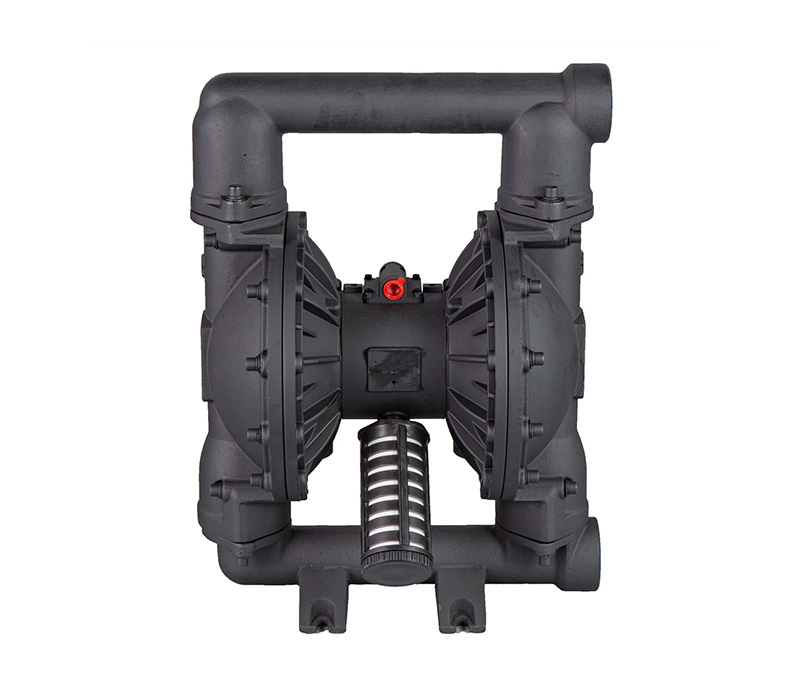

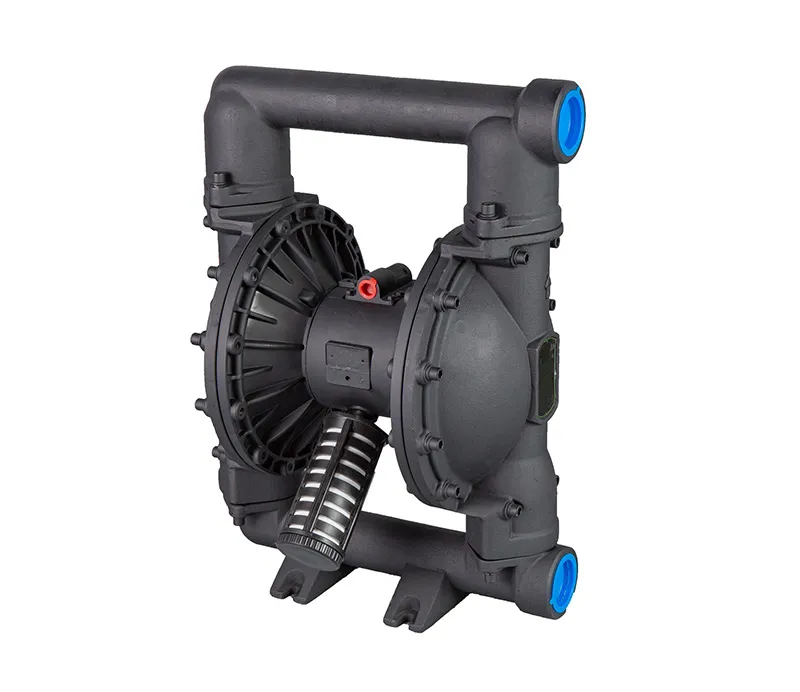

| Model | GK50 Ductile lron Diaphragm Pump |
|---|---|
| Max.Working Pressure | 120psi (0.84Mpa, 8.4bar) |
| Max.Flow Rate | 150 gpm (570 lpm) |
| Max.Reciprocating Speed | 145cpm |
| Max. Suction Height(Dry Sucking) | 5m |
| Max.Permitted Grain | 0.24in. (6mm) |
| Max.Air Consumption | 140scfm (70L/s) |
| Air Inlet Size | 1/2 in. |
| Air Outlet Size | 3/4 in. |
| Fluid Inlet Size | 2in. |
| Fluid Outlet Size | 2in. |
| Weight | Ductile iron pump: 57.5kg |
Products Applications
| Industries Involved | Applications |
| Paper Industry | Binder / adhesives, resin, paint, ink, pigment, hydrogen peroxide, etc. |
| Construction Industry | Grout, ceramic tile adhesive, rock slurry, ceiling paint, etc. |
*Please contact our sales service at sales@gk-supply.com for more details about products applications.
Product Advantages
Due to the use of air as power, the flow is automatically adjusted with the change of back pressure (outlet resistance), suitable for medium and high viscosity fluids. The working point of the centrifugal pump is set on the basis of water. If it is used for a fluid with a slightly higher viscosity, it needs to be equipped with a reducer or a variable frequency governor, which will greatly increase the cost, and the same for the gear pump.
