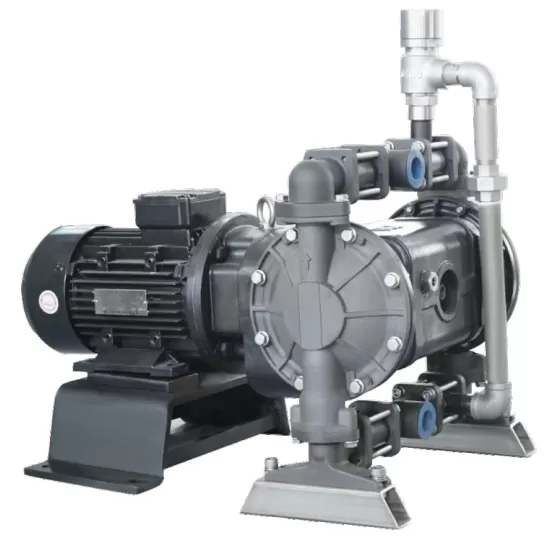

| Model | GKE25 Aluminum Electric Diaphragm Pump |
|---|---|
| Max.Outlet Pressure | 0.6Mpa |
| Max.Flow Rate | 3.5m3 /h |
| Suction Lift (Dry） | 3m |
| Motor Power | 1.5KW in standard (senior 2.2KW as options) |
| Motor Speed | 1450r/min |
| Inlet&Outlet∶ | 1" inch Thread or Flange |
Products Applications
| Industries Involved | Applications |
| Electronic Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| New Energy Industry | Fluid transportation, sewage discharge, solid-liquid separation, etc. |
| Construction Industry | Grout, ceramic tile adhesive, rock slurry, ceiling paint, etc. |
| Furniture Industry | adhesives, varnishes, decentralized system / dispersions, solvents, color agent / colorants, sapwood glue, epoxy resins, starch binders |
| Shipbuilding Industry | water, wastewater, Residual oil, brine |
| Electric Power Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Environmental Protection Industry | Wastewater, Recycled water, Chemical solution (wastewater treatment) |
| Coal Industry | It is responsible for spraying water during coal mining to remove dust and reduce the temperature of mining tools. |
| Biotechnology Industry | Acids, alkali, solvents, suspended solids, decentralized system |
*Please contact our sales service at sales@gk-supply.com for more details about products applications.
Product Advantages
The whole machine of electric pump does not contain zinc and copper to ensure the safety and reliability of materials which always use in new energy industry.
Since the diaphragm separates the conveyed medium from the transmission mechanical parts so the medium will never leak.
The electric diaphragm pump itself has no shaft seal, which greatly prolongs the service life.
