| Model | GK80 New Aluminum Diaphragm Pump |
|---|---|
| Max.Working Pressure | 120psi (0.84Mpa, 8.4bar) |
| Max.Flow Rate | 270 gpm (1022 lpm) |
| Max.Reciprocating Speed | 135cpm |
| Max. Suction Height（Dry Sucking） | 5m |
| Max.Permitted Grain | 0.37in. (9.4mm) |
| Max. Air Consumption | 180 scfm (90L/s) |
| Air Inlet Size | 3/4 in. |
| Air Outlet Size | 1 in. |
| Fluid Inlet Size | 3 in. |
| Fluid Outlet Size | 3 in. |
| Weight | Aluminum pump 77.0kg |

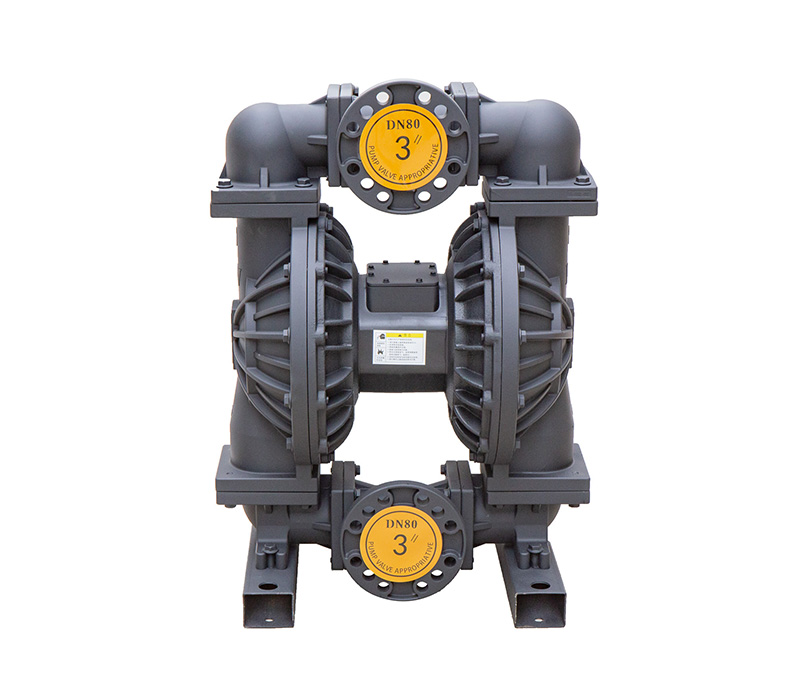

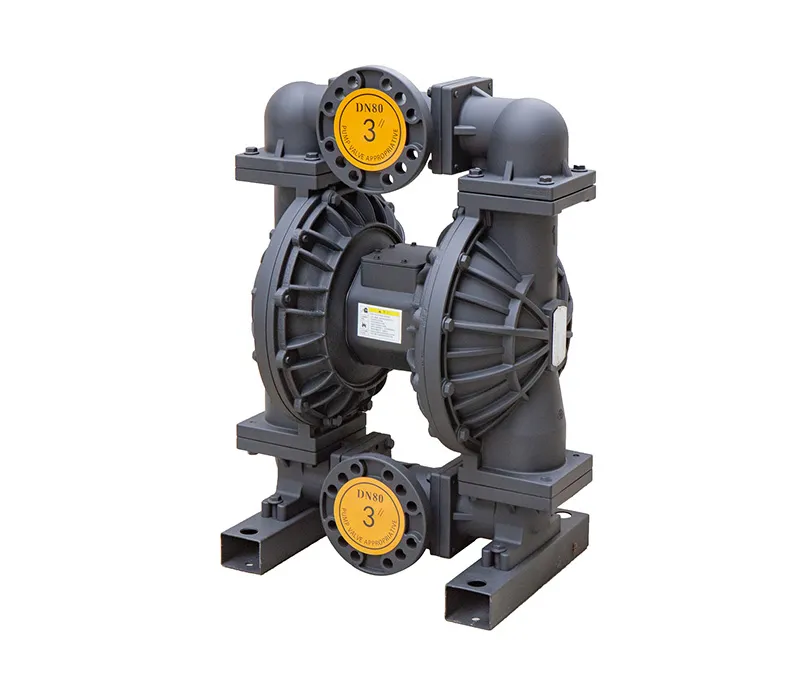

Product Description
This pump is designed to handle even the most demanding applications, delivering exceptional performance and reliability with every use. With a maximum working pressure of 120psi, a maximum flow rate of 270 gpm, and a maximum reciprocating speed of 135cpm, this pump can handle even the toughest jobs with ease.
One of the standout features of the GK80 is its ability to handle dry suctioning, with a maximum suction height of 5m. This makes it ideal for a wide range of applications, including industrial and agricultural settings. The pump can also handle solids with a maximum permitted grain size of 0.37in. (9.4mm), making it an ideal choice for applications where debris or solids may be present.
The GK80 New Aluminum Diaphragm Pump is also highly efficient, with a maximum air consumption of 180 scfm (90L/s) and a lightweight aluminum pump that weighs only 77.0kg. The pump features a 3/4 in. air inlet size, a 1 in. air outlet size, a 3 in. fluid inlet size, and a 3 in. fluid outlet size, making it versatile enough to be used in a wide range of applications.
Whether you need to transfer fluids in an industrial setting or handle the demands of an agricultural operation, the GK80 New Aluminum Diaphragm Pump is the perfect choice. With its exceptional performance, reliability, and efficiency, this pump is sure to deliver outstanding results every time. Contact us today to learn more about how the GK80 can help you optimize your fluid transfer processes.
Industries Involved | Applications |
| Petrochemical Industry | Crude oil, heavy oil, grease, mud, sludge, etc. |
| Chemical Insdutry | Acids, alkali, solvents, suspended solids, decentralized system |
| Wastewater Treatment | Lime milk, Soft Sediments, Sewage, Chemicals, Wastewater |
| Electronic Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Nuclear Power Industry | Pipeline system, nuclear station lubrication system and common island(CI) wastewater treatment |
| Automobile Industry | Polishing emulsions, oils, coolants, automotive priming, oil emulsion paints, varnishes, varnish additives, degreasers / degreasing fluid, paints, etc. |
| Pharmaceutical Industry | Solvents, acids, alkalis, plant extracts, ointments / cream, plasma and other pharmaceutical liquids |
| Ceramic Industry | Mud, Slurry pottery, Lime milk, Clay Slurry |
| New Energy Industry | Fluid transportation, sewage discharge, solid-liquid separation, etc. |
| Metallurgical, Casting and Dyeing Industry | Metal slurries, hydroxide and carbide slurries, dust washing slurries, etc. |
| Ink Industry / Painting Industry /Coating Industry | Resins, Solvents, Colorants/Coloring Agent, Paints, etc. |
| Food and Beverage Industry | Food - Liquid semi-solid, chocolate, salt water / brine, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood. Beverage - Yeast, syrups, concentrates, gas-liquid mixtures, wines, fruit juices, corn pulp / corn steep liquor, etc. |
| Cosmetic Industry | Detergent, Shampoo, Lotion, Emulsion, camphor ice / Hand Cream, Surface active agent / Surfactant |
| Mining Industry | Coal slurry, magma, mud, mortar, explosive slurry, lubricating oil / lubricant, etc. |
| Paper Industry | Binder / adhesives, resin, paint, ink, pigment, hydrogen peroxide, etc. |
| Textile Industry | Chemical dyes, resins, glues, etc. |
| Construction Industry | Grout, ceramic tile adhesive, rock slurry, ceiling paint, etc. |
| Furniture Industry | adhesives, varnishes, decentralized system / dispersions, solvents, color agent / colorants, sapwood glue, epoxy resins, starch binders |
| Shipbuilding Industry | water, wastewater, Residual oil, brine |
| Electric Power Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Environmental Protection Industry | Wastewater, Recycled water, Chemical solution (wastewater treatment) |
| Coal Industry | It is responsible for spraying water during coal mining to remove dust and reduce the temperature of mining tools. |
| Biotechnology Industry | Acids, alkali, solvents, suspended solids, decentralized system |
There are several key advantages to using the GK80 3 inch diaphragm pump for your fluid transfer needs:
1. Exceptional Performance: With a maximum working pressure of 120psi, a maximum flow rate of 270 gpm, and a maximum reciprocating speed of 135cpm, this pump is designed to handle even the most demanding applications with ease.
2. Versatility: The pump features a 3/4 in. air inlet size, a 1 in. air outlet size, a 3 in. fluid inlet size, and a 3 in. fluid outlet size, making it versatile enough to be used in a wide range of applications.
3. Dry Suctioning Capability: The pump can handle dry suctioning with a maximum suction height of 5m, making it ideal for industrial and agricultural settings.
4. Solids Handling Capability: The pump can handle solids with a maximum permitted grain size of 0.37in. (9.4mm), making it an ideal choice for applications where debris or solids may be present.
5. High Efficiency: The pump has a maximum air consumption of 180 scfm (90L/s) and features a lightweight aluminum pump that weighs only 77.0kg, making it highly efficient and easy to operate.
Overall, the GK80 New Aluminum Diaphragm Pump offers exceptional performance, versatility, and efficiency, making it the perfect choice for a wide range of fluid transfer applications.
The GK80 3 inch diaphragm aluminum pump comes with several key features that make it a top-performing choice for fluid transfer applications:
1. Aluminum Diaphragm: The pump features a high-quality aluminum diaphragm that is designed to withstand the demands of heavy-duty applications, ensuring long-lasting durability and reliable performance.
2. Maximum Working Pressure: The pump is capable of delivering a maximum working pressure of 120psi (0.84Mpa, 8.4bar), making it suitable for a wide range of industrial and agricultural applications.
3. Maximum Flow Rate: The pump has a maximum flow rate of 270 gpm (1022 lpm), enabling it to transfer large volumes of fluid quickly and efficiently.
4. Maximum Reciprocating Speed: The pump is capable of operating at a maximum reciprocating speed of 135cpm, ensuring that it can handle even the most demanding applications with ease.
5. Dry Suctioning Capability: The pump is capable of dry suctioning with a maximum suction height of 5m, making it ideal for use in applications where fluids need to be transferred from low-lying areas.
6. Solids Handling Capability: The pump can handle solids with a maximum permitted grain size of 0.37in. (9.4mm), making it suitable for applications where debris or solids may be present.
7. High Efficiency: The pump has a maximum air consumption of 180 scfm (90L/s), making it highly efficient and cost-effective to operate.
8. Versatile Design: The pump features a 3/4 in. air inlet size, a 1 in. air outlet size, a 3 in. fluid inlet size, and a 3 in. fluid outlet size, making it versatile enough to be used in a wide range of applications.
Overall, the GK80 New Aluminum Diaphragm Pump offers a range of features that make it a top-performing choice for fluid transfer applications, delivering exceptional performance, reliability, and efficiency.
Welcome to GIN KAI TECHNOLOGY (SHANGHAI) CO., LTD, your one-stop-shop for air operated diaphragm pumps, electric diaphragm pumps, and piston pumps. We are proud to introduce our latest innovation, the GK80 3 Inch Diaphragm Aluminum Pump - a top-performing solution designed to meet all of your fluid transfer needs.
Our 3 inch diaphragm pump is perfect for a wide range of applications, from industrial and agricultural settings to marine and construction sites. It's made with high-quality aluminum, which is lightweight and durable, ensuring long-lasting performance even in the most demanding environments.
This diaphragm pump is equipped with a 3 inch air diaphragm, making it highly efficient in transferring fluids quickly and easily. The up-down inlet and outlet design ensures smooth operation and easy installation, while the included silencer helps to reduce noise levels during operation.
In addition, the GK80 3 Inch Diaphragm Aluminum Pump is built to last with high-quality parts and components. We offer a wide range of 3 inch diaphragm pump parts and accessories, including diaphragms, gaskets, valves, and more, to keep your pump running smoothly and efficiently.
At GK, we are committed to providing our customers with the highest level of service and support. That's why we offer a range of customized solutions to meet your specific needs, from pump customization to on-site support and training.
If you're looking for a 3 inch diaphragm pump for sale, look no further than GK. Our pumps are designed to deliver exceptional performance, reliability, and efficiency, making them the perfect choice for all of your fluid transfer needs. So why wait? Contact us today to learn more about our 3 inch diaphragm aluminum pump and how it can help improve your operations.
