| Model | GK50 Full Polypropylene Diaphragm Pump |
|---|---|
| Max.Working Pressure | 120psi (0.84Mpa, 8.4bar) |
| Max.Flow Rate | 150 gpm (570 lpm) |
| Max.Reciprocating Speed | 145cpm |
| Max. Suction Height(Dry Sucking) | 5m |
| Max.Permitted Grain | 0.24in. (6mm) |
| Max.Air Consumption | 140scfm (70L/s) |
| Air Inlet Size | 1/2 in |
| Air Outlet Size | 3/4 in. |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Weight | Flange connect PP 22.0kg |
Product Description

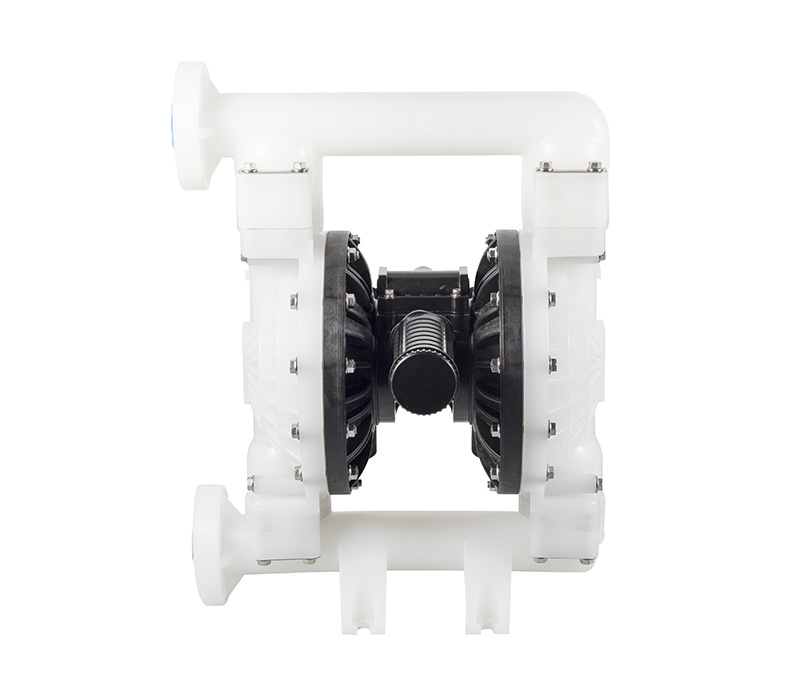

Introducing the GK50 Full Polypropylene Diaphragm Pump - the perfect solution for your fluid transfer needs. This pump is constructed entirely from polypropylene, making it resistant to a wide range of chemicals and ideal for use in corrosive environments. With a 2 inch diaphragm pump design, it can handle a maximum flow rate of 150 gpm (570 lpm) and a maximum working pressure of 120psi (0.84Mpa, 8.4bar), making it suitable for a variety of applications.
The GK50 Full Polypropylene Diaphragm Pump is incredibly versatile, with a maximum suction height (dry sucking) of 5m and a maximum permitted grain size of 0.24in. (6mm). It also boasts a maximum reciprocating speed of 145cpm and a low air consumption of 140scfm (70L/s), making it both efficient and effective.
In addition to its impressive performance, this pump is also easy to install and operate, with an air inlet size of 1/2 in and an air outlet size of 3/4 in. The fluid inlet and outlet sizes are both 2 in, allowing for seamless integration into your existing setup.
Best of all, the diaphragm pump price is competitive and cost-effective, making it an excellent value for the high-quality features and capabilities it offers. So why wait? Upgrade to the GK50 Full Polypropylene Diaphragm Pump today and experience the benefits of a reliable and efficient pump. If you have interested in our polypropylene diaphragm pump, please feel free to contact us.
| Industries Involved | Applications |
| Petrochemical Industry | Crude oil, heavy oil, grease, mud, sludge, etc. |
| Chemical Insdutry | Acids, alkali, solvents, suspended solids, decentralized system |
| Wastewater Treatment | Lime milk, Soft Sediments, Sewage, Chemicals, Wastewater |
| Electronic Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Nuclear Power Industry | Pipeline system, nuclear station lubrication system and common island(CI) wastewater treatment |
| Automobile Industry | Polishing emulsions, oils, coolants, automotive priming, oil emulsion paints, varnishes, varnish additives, degreasers / degreasing fluid, paints, etc. |
| Pharmaceutical Industry | Solvents, acids, alkalis, plant extracts, ointments / cream, plasma and other pharmaceutical liquids |
| Ceramic Industry | Mud, Slurry pottery, Lime milk, Clay Slurry |
| New Energy Industry | Fluid transportation, sewage discharge, solid-liquid separation, etc. |
| Metallurgical, Casting and Dyeing Industry | Metal slurries, hydroxide and carbide slurries, dust washing slurries, etc. |
| Ink Industry / Painting Industry /Coating Industry | Resins, Solvents, Colorants/Coloring Agent, Paints, etc. |
| Food and Beverage Industry | Food - Liquid semi-solid, chocolate, salt water / brine, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood. Beverage - Yeast, syrups, concentrates, gas-liquid mixtures, wines, fruit juices, corn pulp / corn steep liquor, etc. |
| Cosmetic Industry | Detergent, Shampoo, Lotion, Emulsion, camphor ice / Hand Cream, Surface active agent / Surfactant |
| Mining Industry | Coal slurry, magma, mud, mortar, explosive slurry, lubricating oil / lubricant, etc. |
| Paper Industry | Binder / adhesives, resin, paint, ink, pigment, hydrogen peroxide, etc. |
| Textile Industry | Chemical dyes, resins, glues, etc. |
| Construction Industry | Grout, ceramic tile adhesive, rock slurry, ceiling paint, etc. |
| Furniture Industry | adhesives, varnishes, decentralized system / dispersions, solvents, color agent / colorants, sapwood glue, epoxy resins, starch binders |
| Shipbuilding Industry | water, wastewater, Residual oil, brine |
| Electric Power Industry | Solvents, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acids, corrosive acids, polishing solutions / liquid |
| Environmental Protection Industry | Wastewater, Recycled water, Chemical solution (wastewater treatment) |
| Coal Industry | It is responsible for spraying water during coal mining to remove dust and reduce the temperature of mining tools. |
| Biotechnology Industry | Acids, alkali, solvents, suspended solids, decentralized system |
The GK50 Full Polypropylene Diaphragm Pump offers several advantages that make it a great choice for fluid transfer applications. Some of the key advantages of this pump include:
1. Chemical resistance: The pump is constructed entirely from polypropylene, making it highly resistant to a wide range of chemicals. This makes it an ideal choice for use in corrosive environments where other pumps may not hold up.
2. Versatility: The pump is highly versatile, with a maximum flow rate of 150 gpm (570 lpm) and a maximum working pressure of 120psi (0.84Mpa, 8.4bar). It also has a maximum suction height (dry sucking) of 5m and a maximum permitted grain size of 0.24in. (6mm), making it suitable for a variety of applications.
3. Efficiency: The pump has a low air consumption of 140scfm (70L/s), making it highly efficient and cost-effective to operate.
4. Easy to install and operate: The pump is easy to install and operate, with an air inlet size of 1/2 in and an air outlet size of 3/4 in. The fluid inlet and outlet sizes are both 2 in, allowing for seamless integration into your existing setup.
5. Durability: The pump is built to last, with a maximum reciprocating speed of 145cpm and a weight of 22.0kg. It can withstand heavy use and is built to withstand the rigors of industrial environments.
Overall, the GK50 Full Polypropylene Diaphragm Pump is a highly reliable and efficient pump that offers a range of benefits and advantages for fluid transfer applications.
The GK50 Full Polypropylene Diaphragm Pump is a high-quality pump that is designed to offer reliable and efficient fluid transfer. Some of the key features of this pump include:
1. Polypropylene construction: The pump is constructed entirely from polypropylene, which makes it highly resistant to a wide range of chemicals and ideal for use in corrosive environments.
2. Maximum flow rate: The pump has a maximum flow rate of 150 gpm (570 lpm), which makes it suitable for a variety of applications.
3. Maximum working pressure: The pump has a maximum working pressure of 120psi (0.84Mpa, 8.4bar), which ensures that it can handle even the toughest pumping jobs.
4. Maximum suction height: The pump has a maximum suction height (dry sucking) of 5m, which makes it ideal for pumping fluids from deep wells or tanks.
5. Low air consumption: The pump has a low air consumption of 140scfm (70L/s), which makes it highly efficient and cost-effective to operate.
6. Easy installation: The pump is easy to install, with an air inlet size of 1/2 in and an air outlet size of 3/4 in. The fluid inlet and outlet sizes are both 2 in, allowing for seamless integration into your existing setup.
7. Maximum permitted grain size: The pump can handle a maximum permitted grain size of 0.24in.(6mm), making it suitable for pumping fluids with small particulate matter.
8. Durability: The pump is built to last, with a maximum reciprocating speed of 145cpm and a weight of 22.0kg. It can withstand heavy use and is built to withstand the rigors of industrial environments.
Overall, the GK50 Full Polypropylene Diaphragm Pump is a highly capable and reliable pump that is designed to deliver efficient fluid transfer with minimal maintenance. Its features make it a great choice for a wide range of pumping applications.
Introducing the GK polypropylene diaphragm pump - the perfect solution for your industrial pumping needs. Our polypropylene diaphragm pump is a type of positive displacement pump that utilizes a flexible diaphragm to move fluid through a chamber. This pump is constructed entirely from polypropylene, making it highly resistant to chemicals and ideal for use in corrosive environments.
With a 2 inch inlet and outlet, our polypropylene diaphragm pump is capable of handling a variety of liquids with ease, including viscous and abrasive fluids. Additionally, the full polypropylene construction of this diaphragm pump ensures that it is durable and long-lasting, making it a cost-effective choice for your pumping needs.
One of the advantages of our polypropylene diaphragm pump is its ability to operate at low pressures, which reduces the risk of damage to the pump and ensures a longer lifespan. Our pump is also equipped with a silencer, reducing the noise level during operation.
When it comes to diaphragm pump price, our polypropylene diaphragm pump is competitively priced, making it an affordable option for businesses looking for a reliable and efficient pumping solution. At GK, we are committed to providing our customers with high-quality products at affordable prices.
